IMP Roof Panel

C Series

One lift. Weather-tight. Done.

The C Series combines structural deck, PIR foam insulation, and finished interior liner in a single click-lock panel. Stop building your roof three times — one installation, one crew, one day.

R-14–33
Insulation Range
39 ft
Max Panel Length
50%
Time Savings

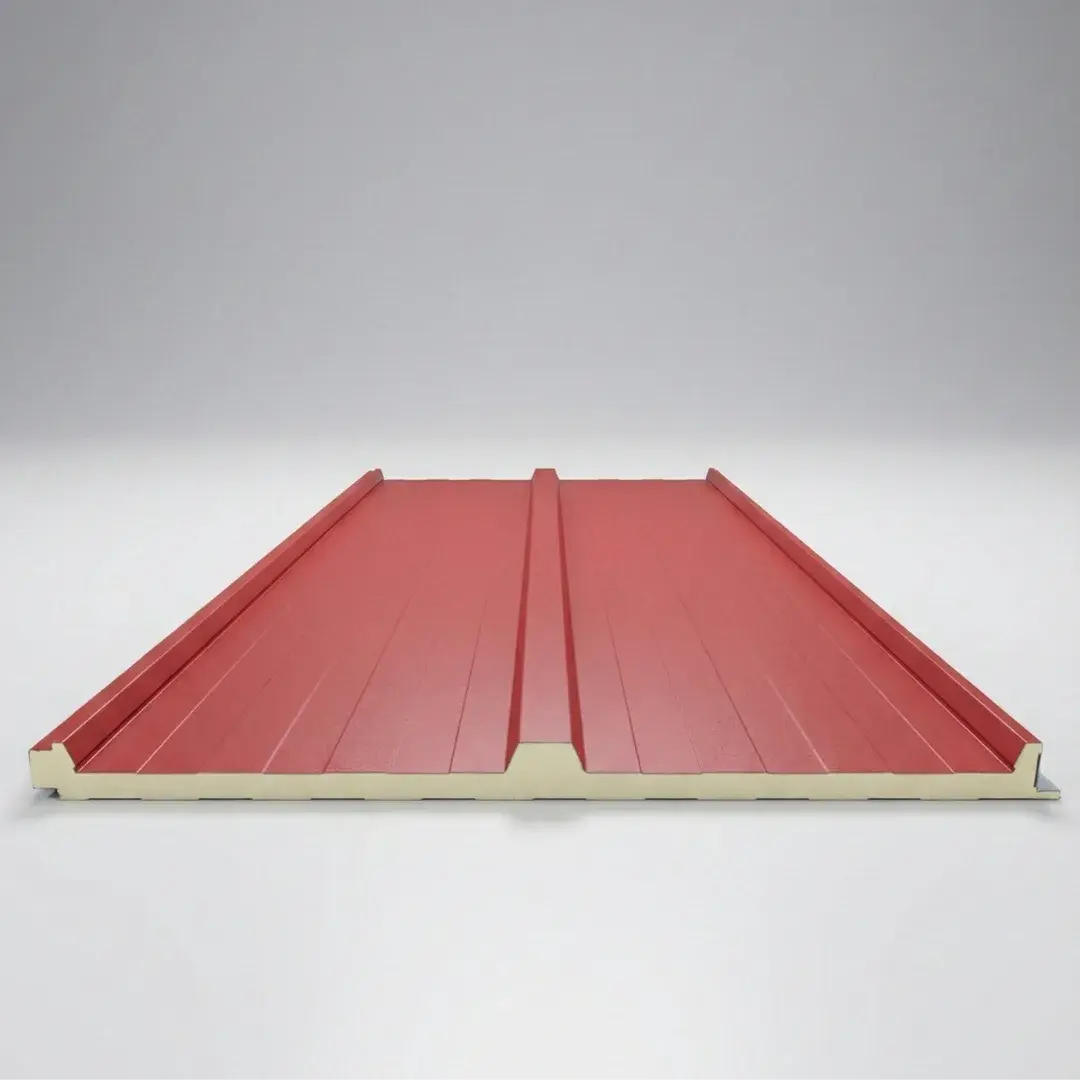

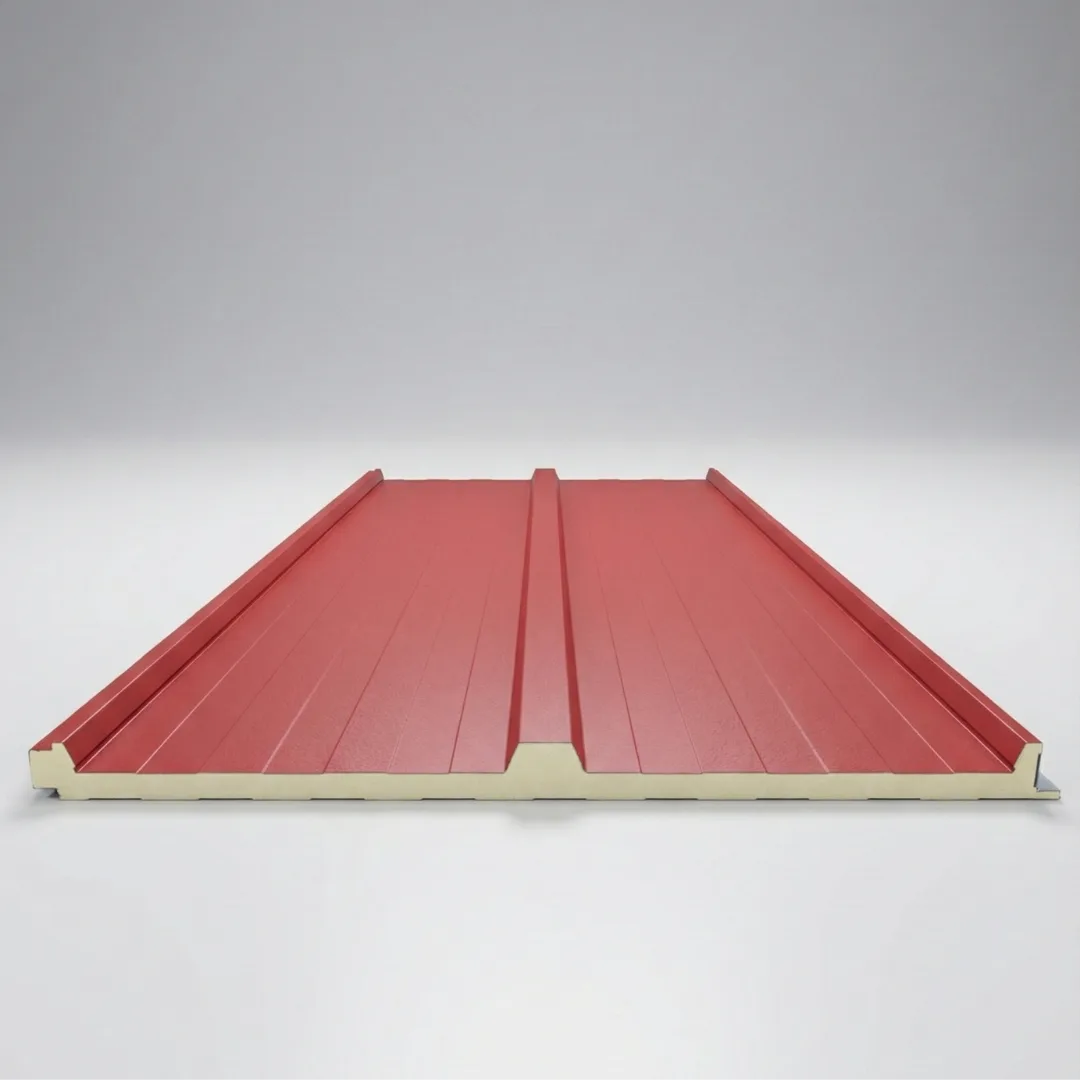

C Series insulated metal roof panel
Florida Product Approved — FL 21699.1-R3ASTM E1592 StructuralClass A Fire — ASTM E84FBC 8th Edition CompliantNON-HVHZ — Valid Statewide
C Series roof panel cross section schematic

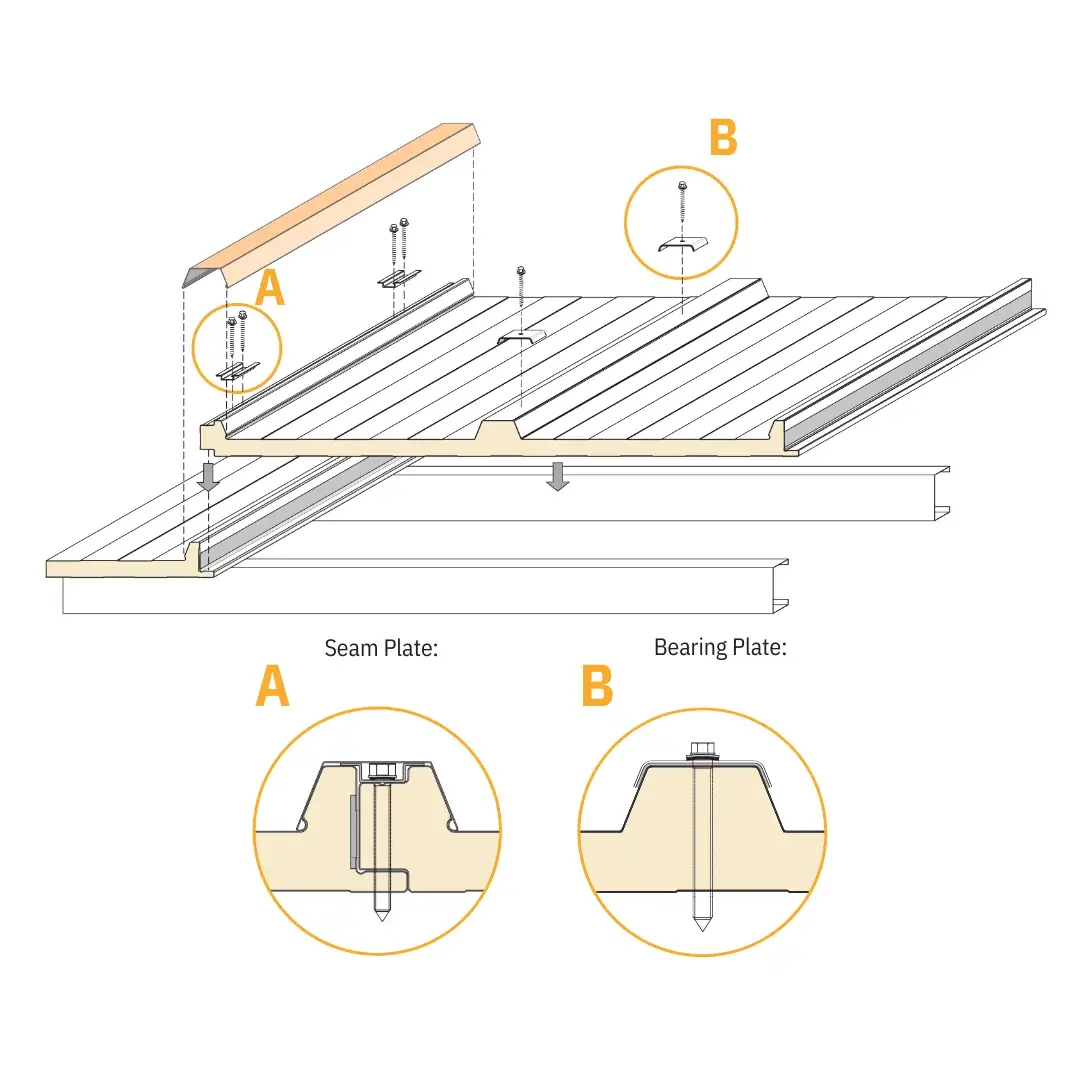

C Series roof panel installation detail

Panel Specifications

Structural steel top facing, PIR foam core, and finished steel interior liner — factory-assembled with concealed fasteners. Arrives on site ready to place, no field insulation required.

ThicknessR-ValueBest For
2"(50mm)R-14Standard roofing
3"(80mm)R-22Enhanced performance
4"(100mm)R-27High-efficiency buildings
5"(120mm)R-33Maximum energy savings
Cover Width
39 3/8"
Max Panel Length
39 ft
Core
PIR Foam
Facing
Structural Steel
Fire Rating
Class A (ASTM E84)
Joint
Concealed Fastener
Available Colors
Xipre panel available colors 2025
One lift. Done.

Industrial & Warehouse Roofing

The C Series replaces the conventional built-up roof system — decking, vapor barrier, insulation, cover board, membrane — with a single panel. One crew, one day, done. Ideal for manufacturing plants, distribution centers, and industrial expansions where speed and thermal control matter.

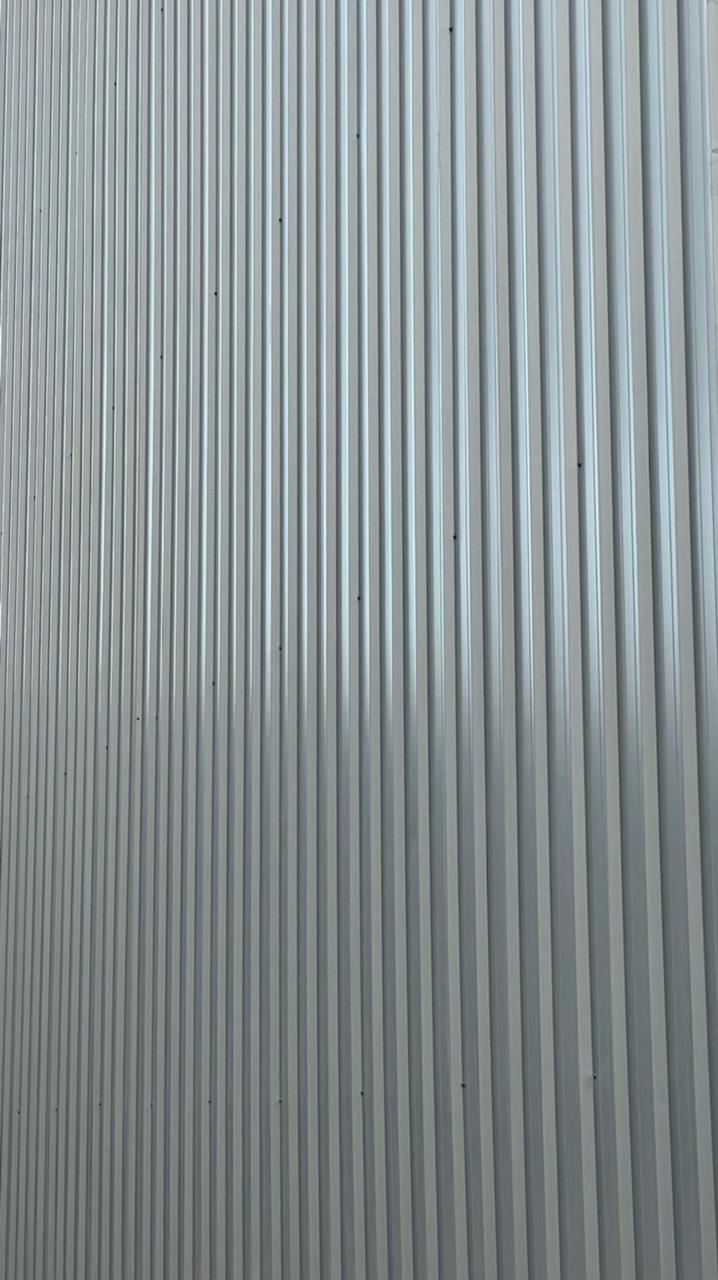

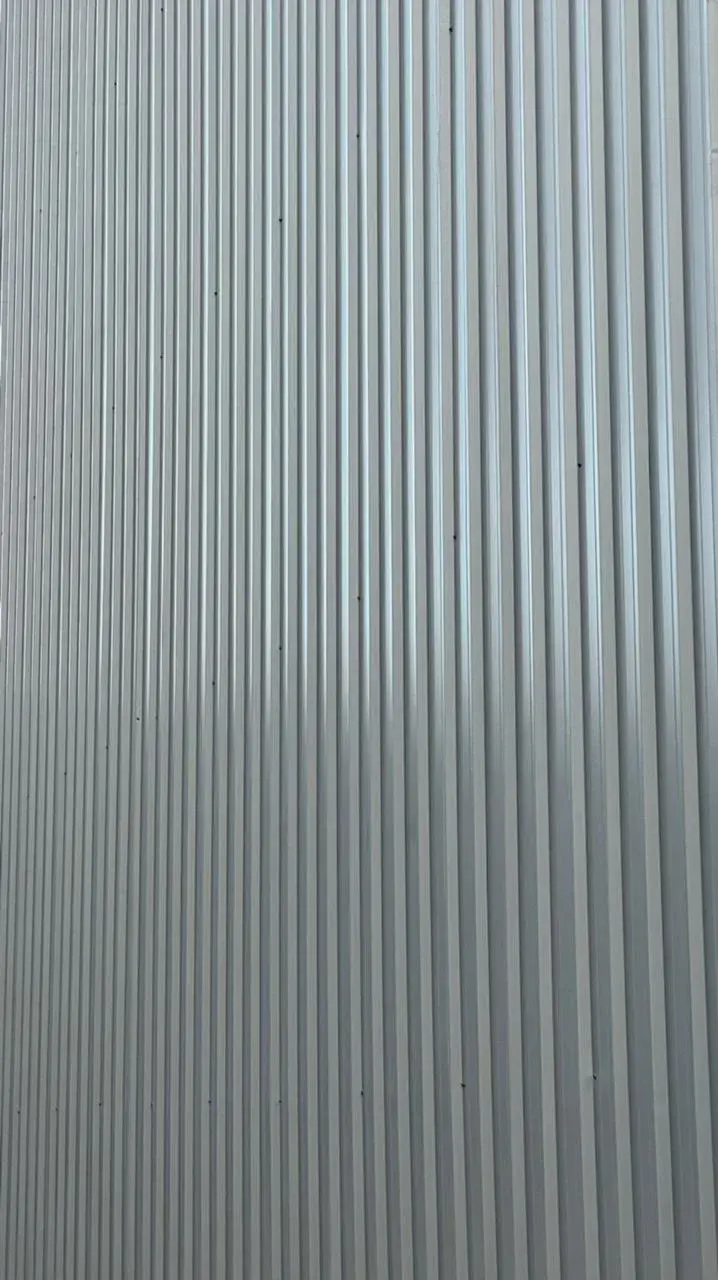

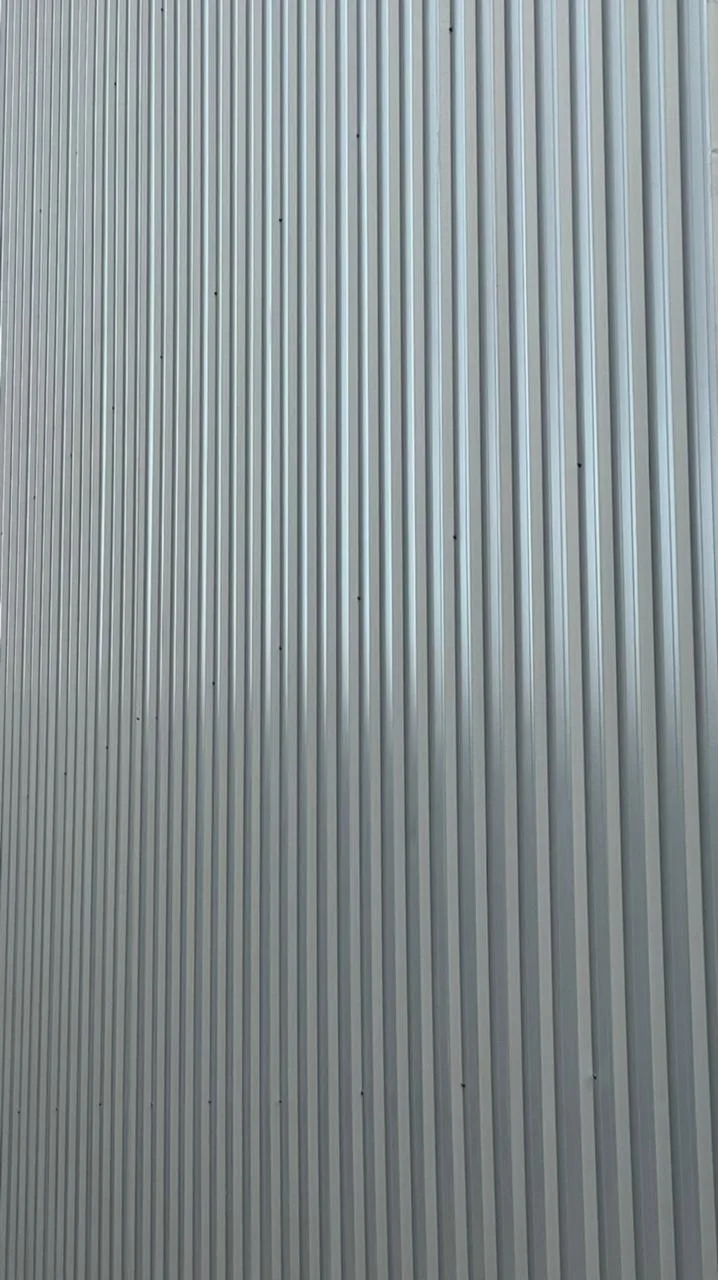

C Series IMP roof industrial warehouse

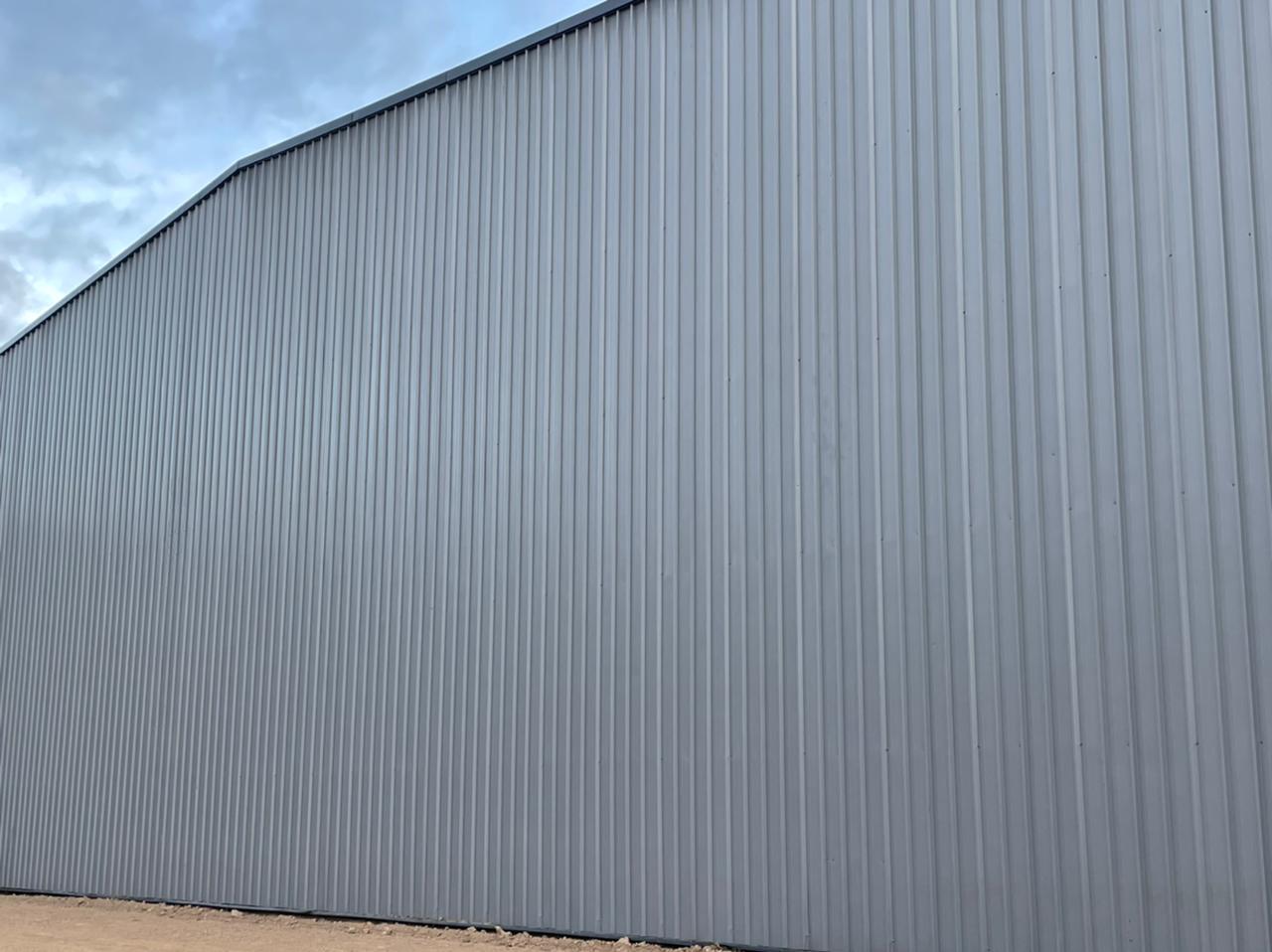

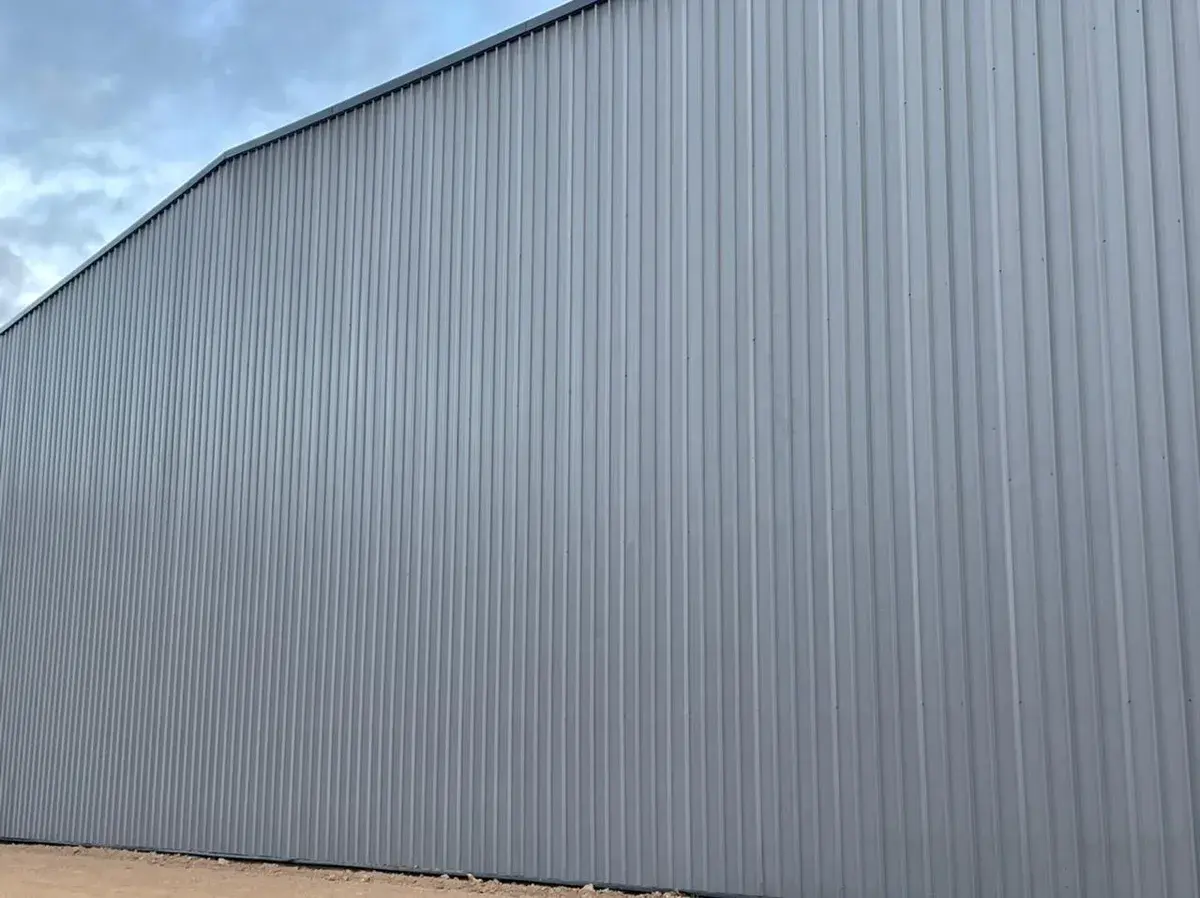

Insulated metal panel roof warehouse

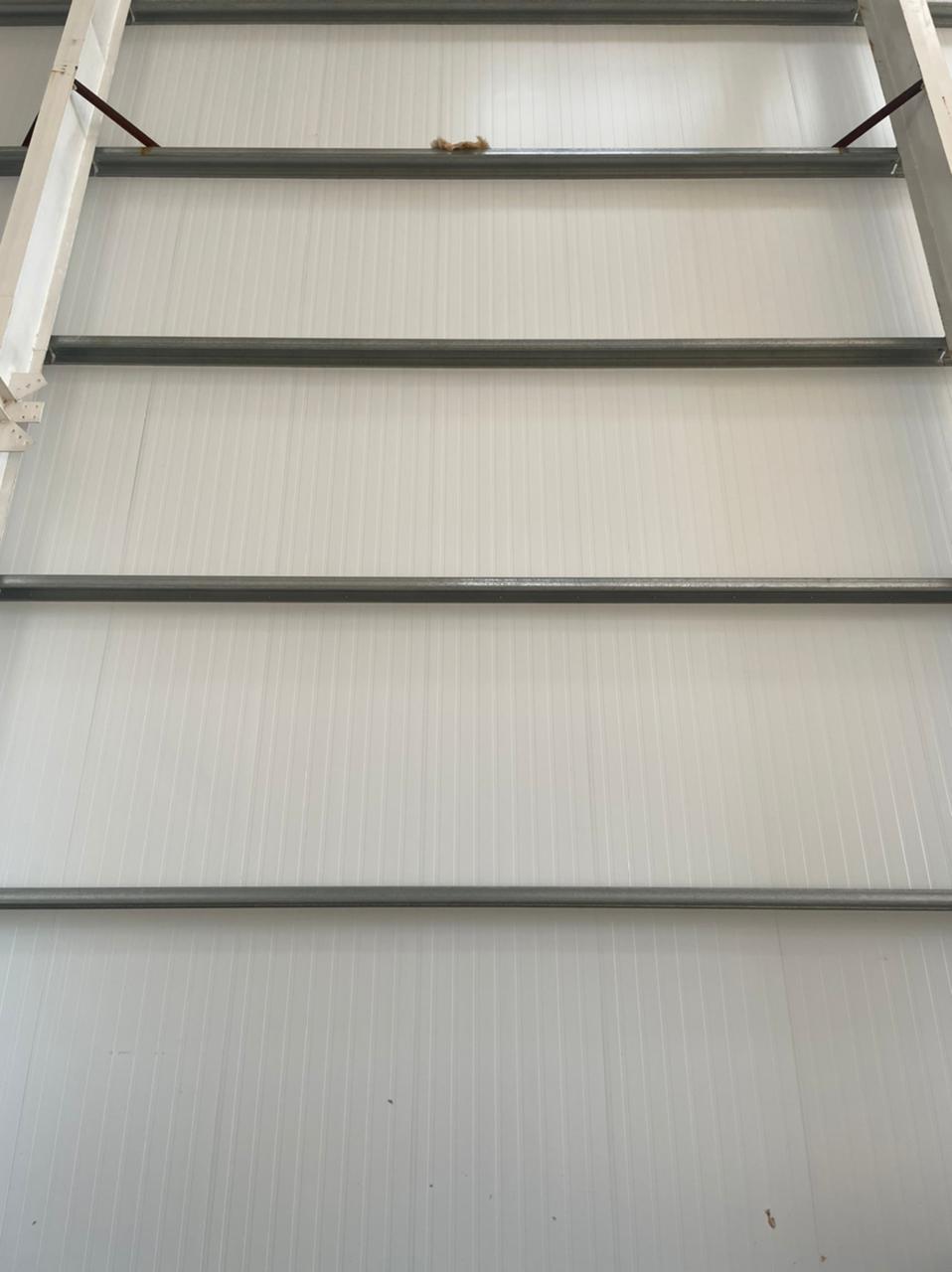

IMP roof panel installation logistics

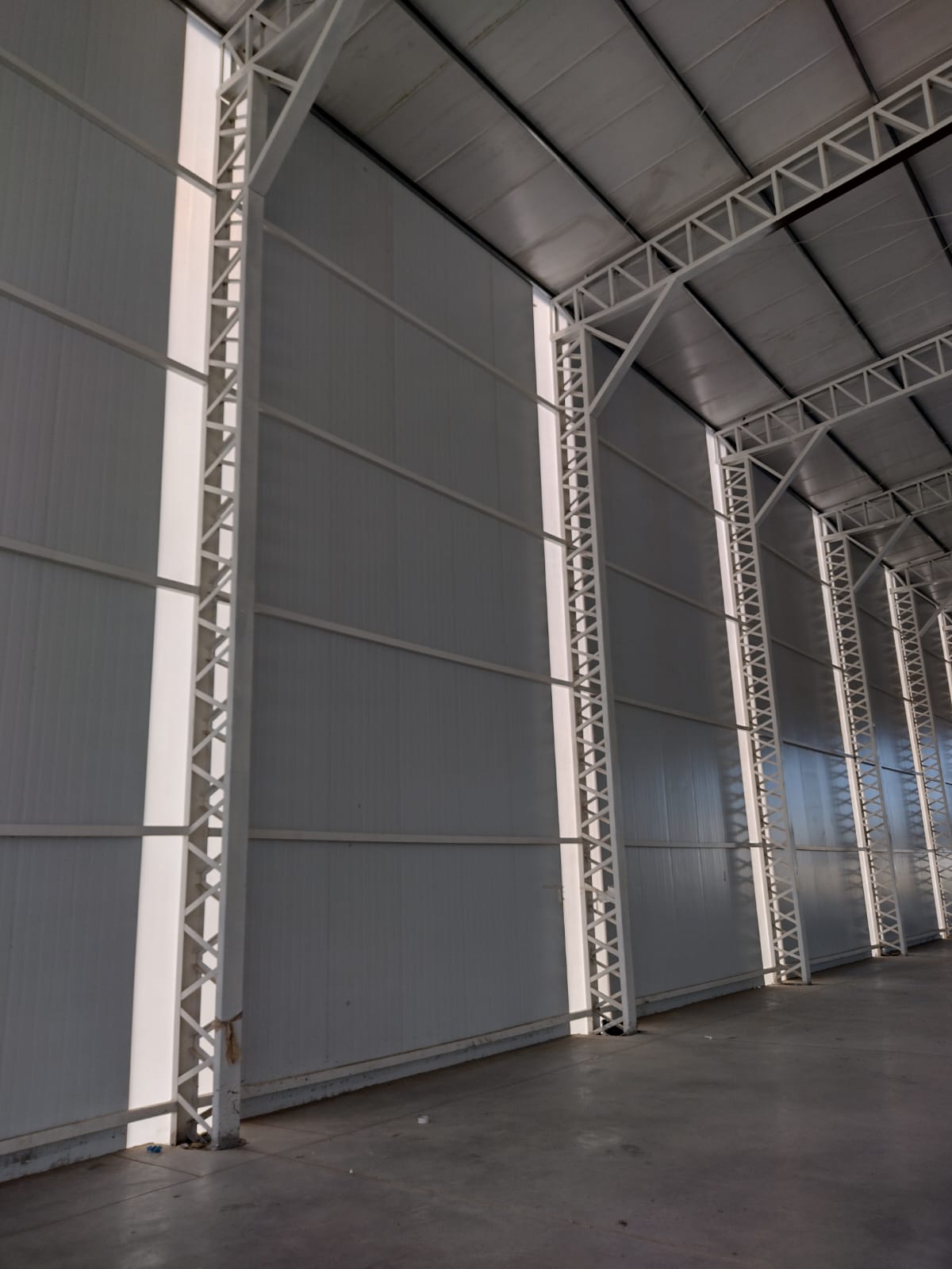

Logistics warehouse IMP roof
50% faster installation vs. built-up systems
Single panel replaces 4-layer assembly
Class A fire rating (ASTM E84)
39 ft max length — fewer joints, fewer leaks
Hold the temperature. Cut the energy bill.

Cold Storage & Temperature-Controlled Facilities

At R-33 (5"), the C Series delivers superior thermal resistance for cold rooms, food processing facilities, pharmaceutical warehouses, and any application where maintaining a stable interior temperature is critical. The PIR foam core has zero moisture absorption — no degradation over time.

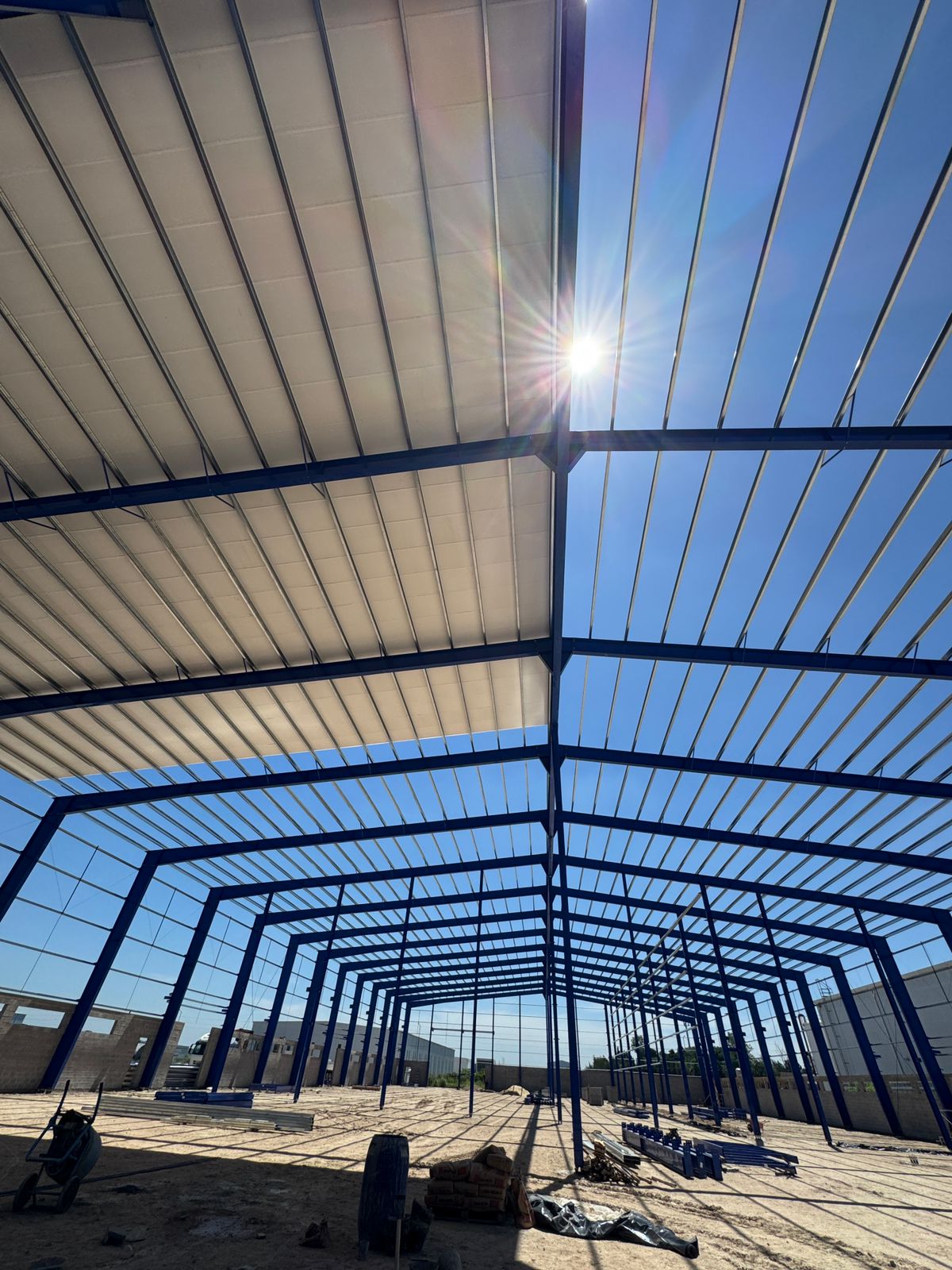

Cold storage IMP roof food facility

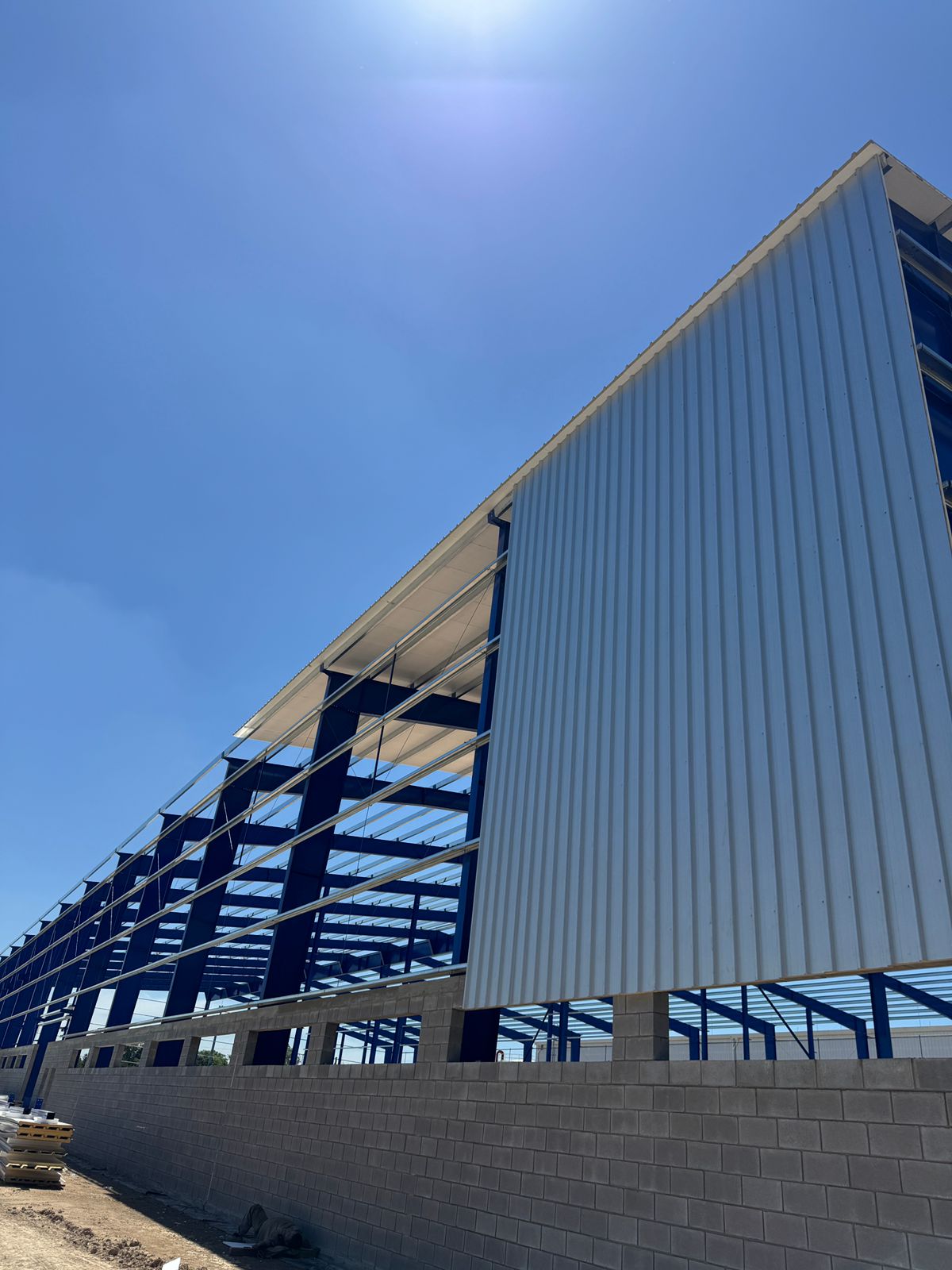

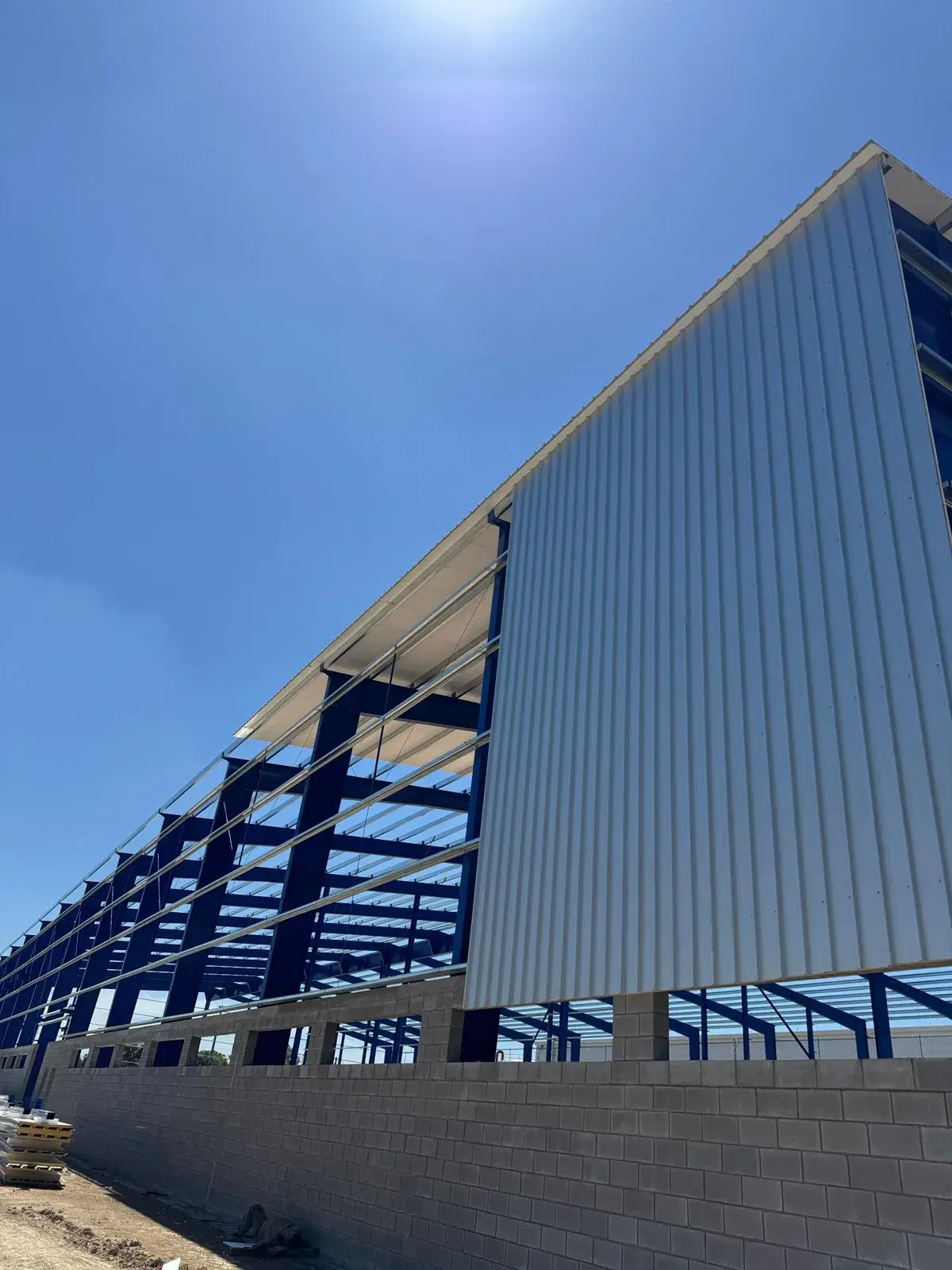

Temperature-controlled IMP roofing

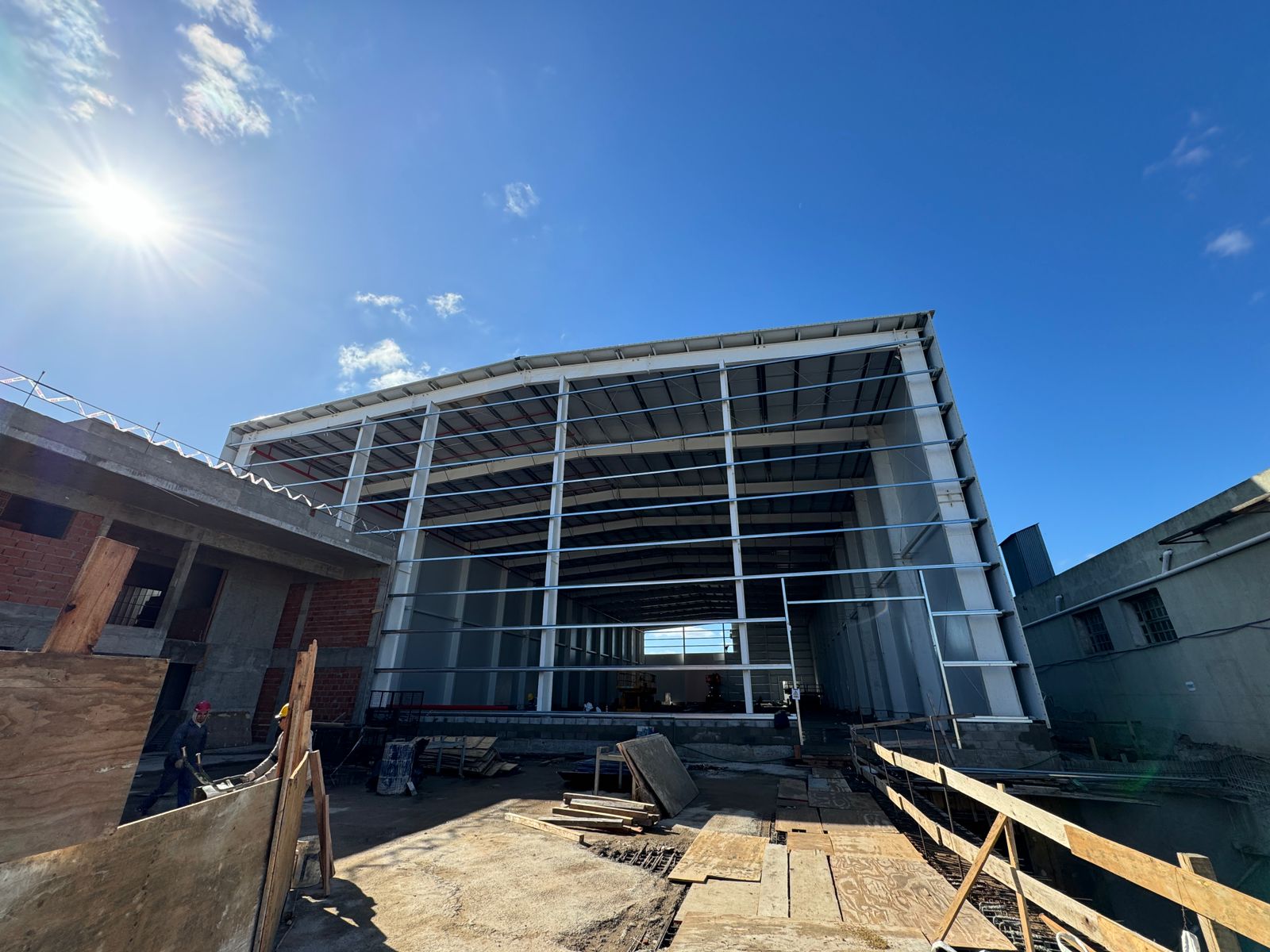

Laboratory IMP roof temperature control

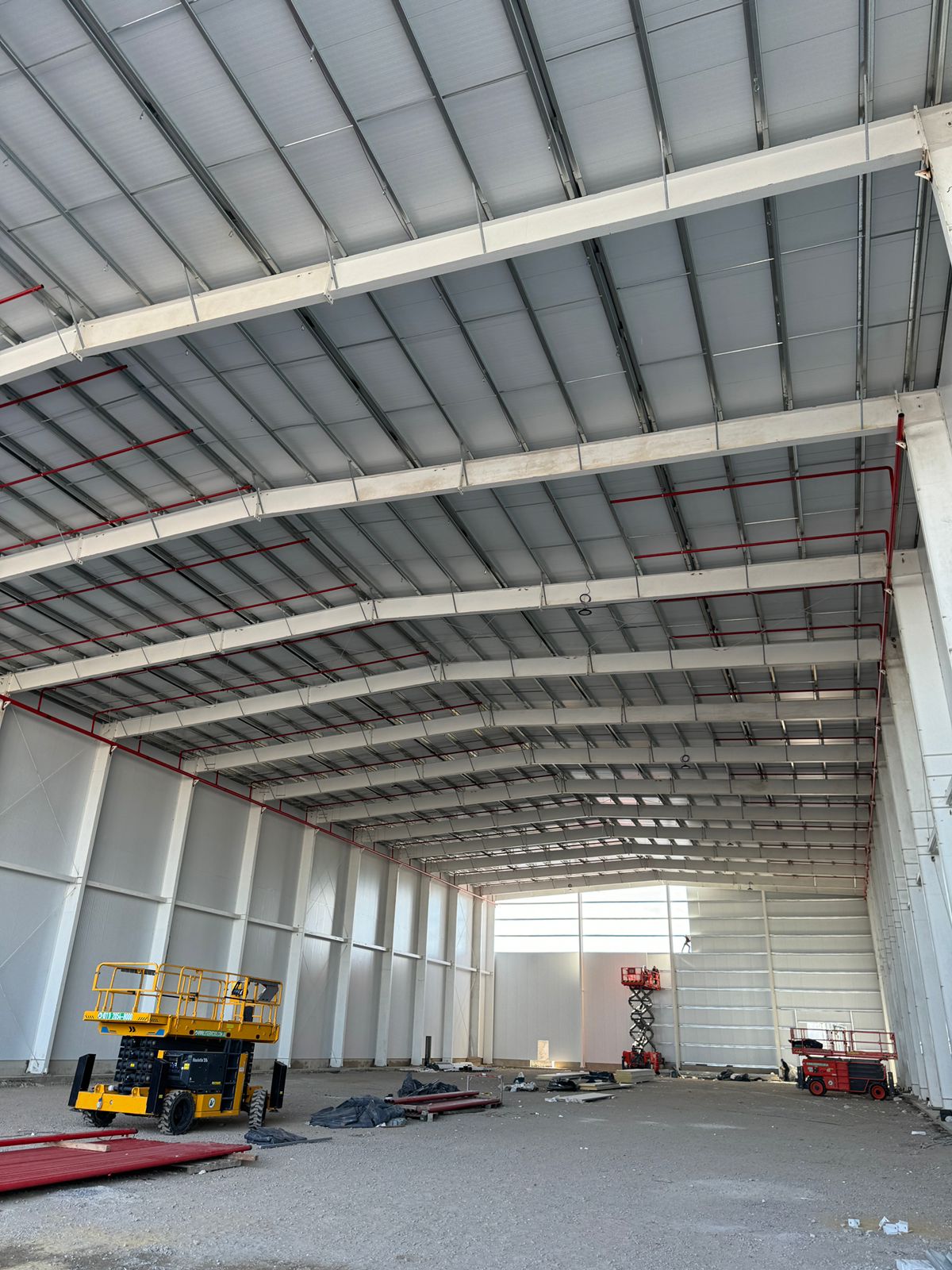

Pharmaceutical facility IMP roof
Up to R-33 with 5" panel
PIR foam: zero moisture absorption
Airtight joint system — no thermal bypass
Compatible with refrigeration equipment loads
Architectural look. Engineering performance.

Commercial Buildings

The C Series gives commercial buildings a clean, modern roofline with the thermal performance required by Florida Building Code 8th Edition. Available in a wide range of colors and finishes. Fewer roof penetrations, longer spans, and a finished look that holds up decade after decade.

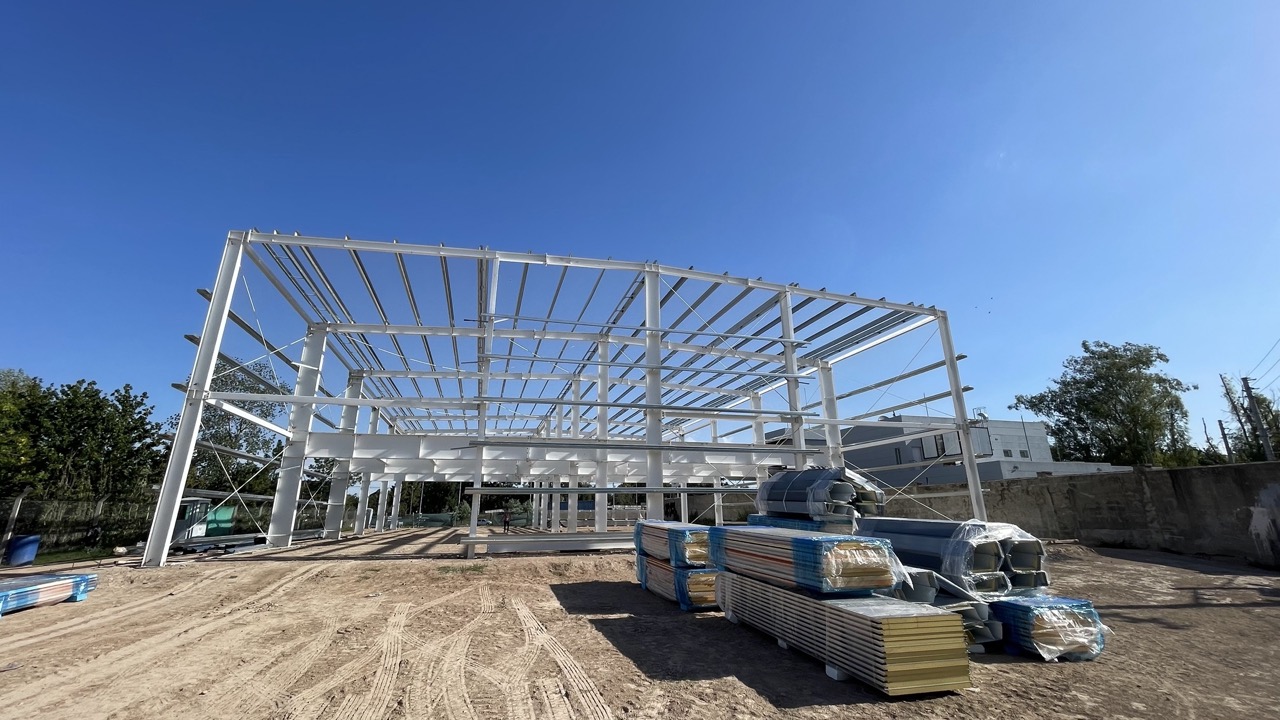

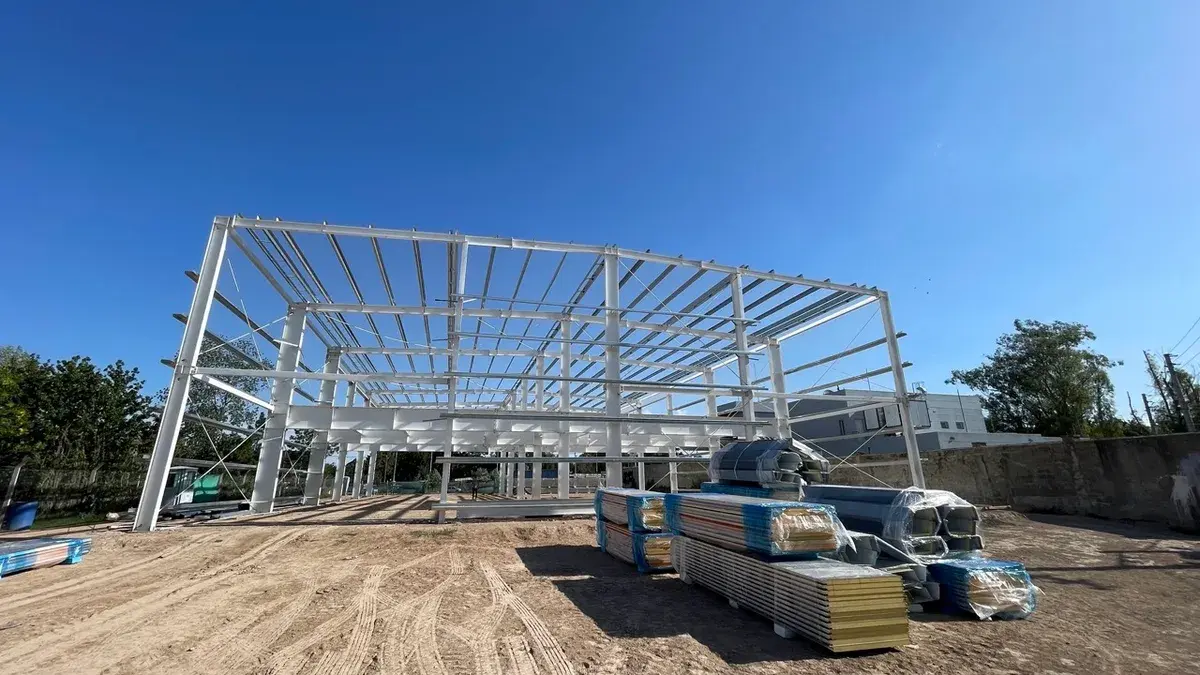

Commercial building C Series IMP roof

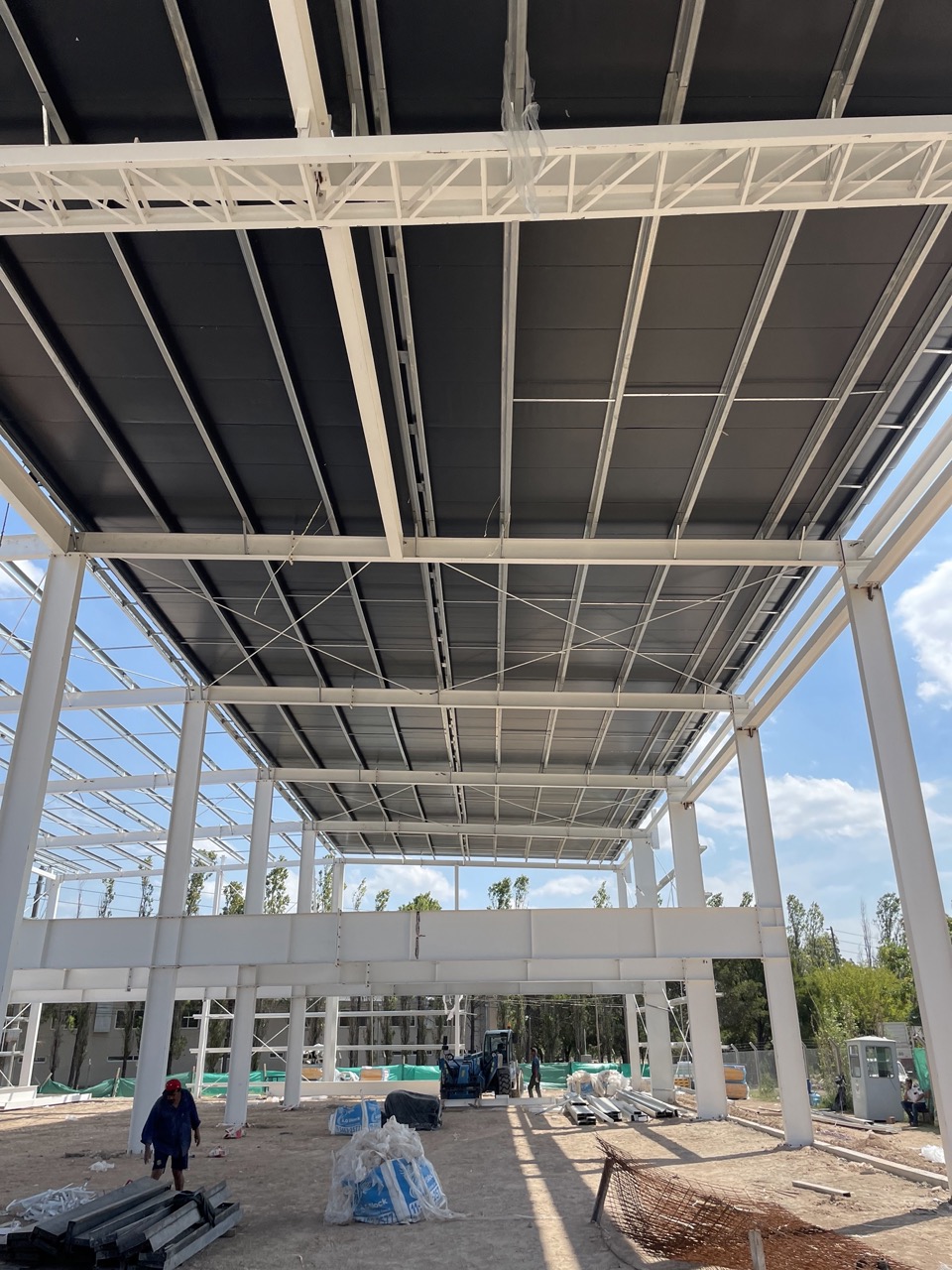

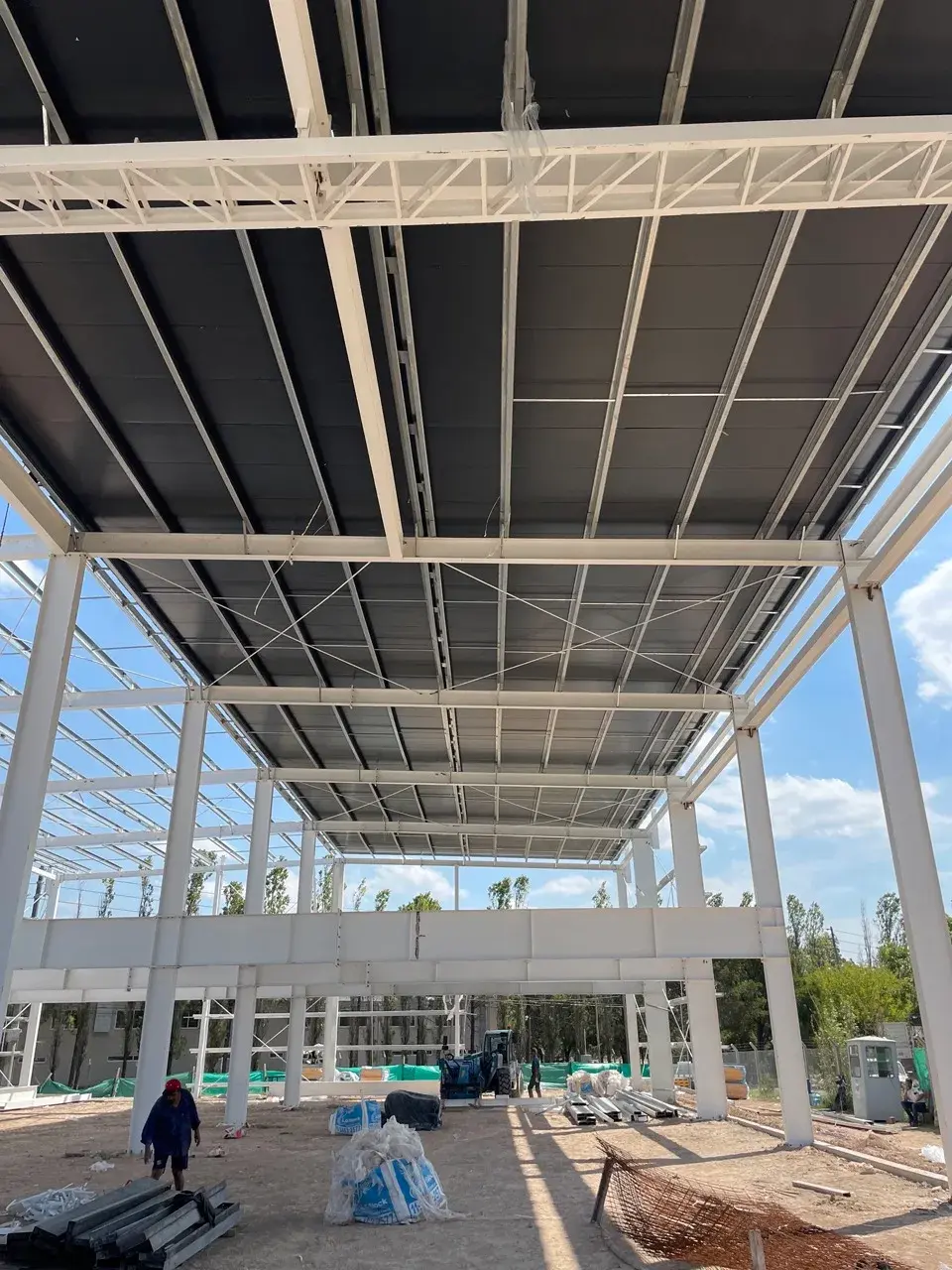

Retail building insulated metal panel roof

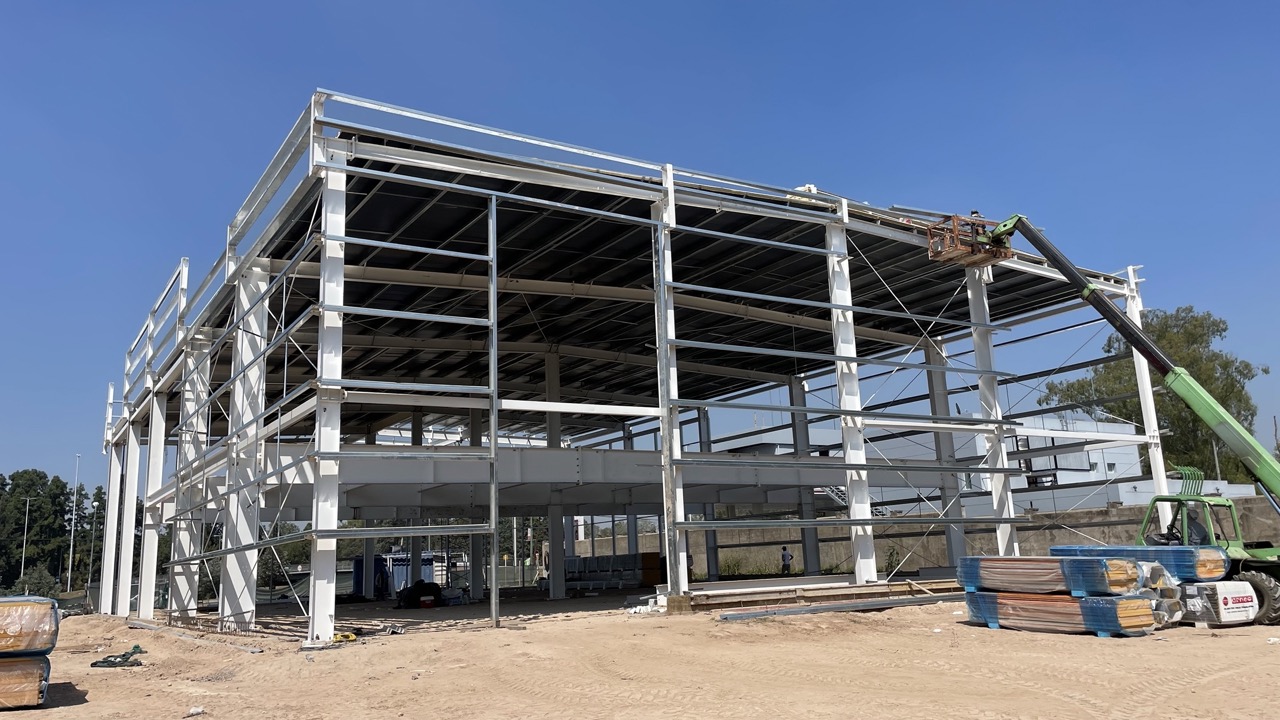

IMP roof commercial application

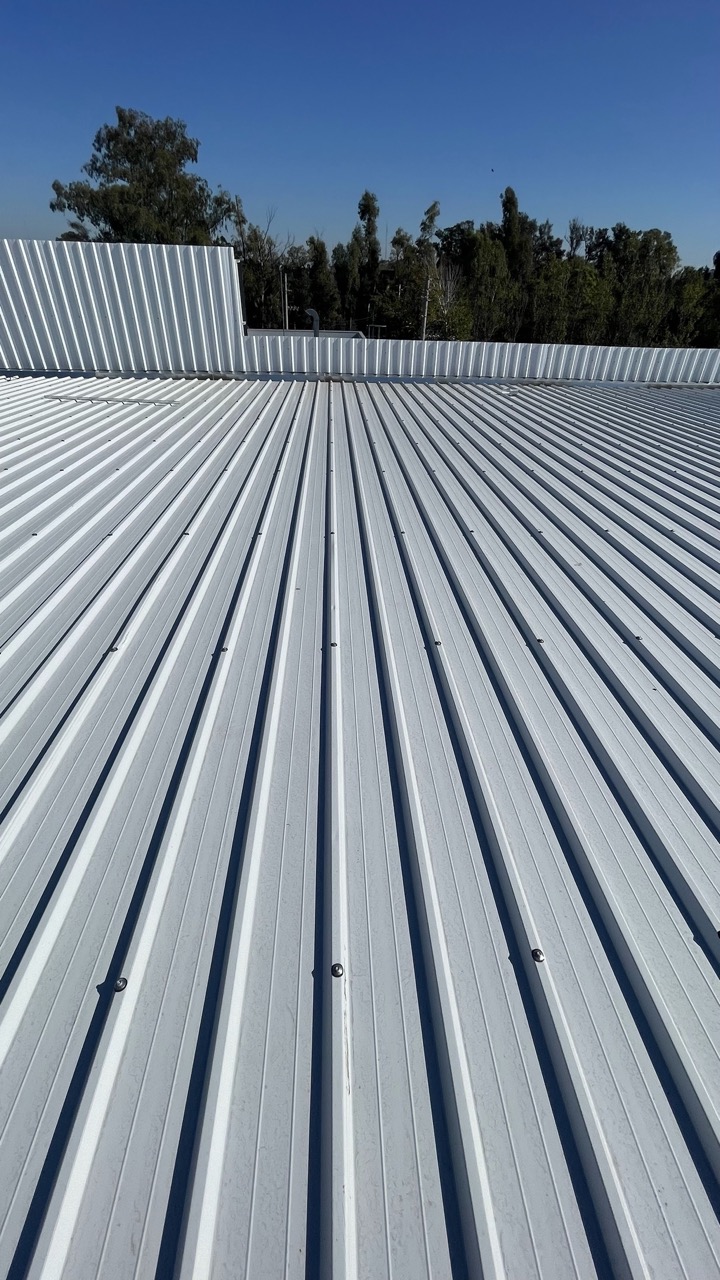

Metal panel roof commercial building
Florida Product Approved FL 21699.1-R3
Meets FBC 8th Edition energy code
Wide color palette — custom colors available
Low-slope and steep-slope configurations
Speed matters when production is waiting.

Plant Expansions & New Construction

When a facility needs more covered space — fast — the C Series delivers. Panels arrive pre-engineered to your span, no field cutting of insulation, no multi-trade sequencing. From permit to weather-tight in days, not weeks. Perfect for plant additions, new bays, and greenfield industrial builds.

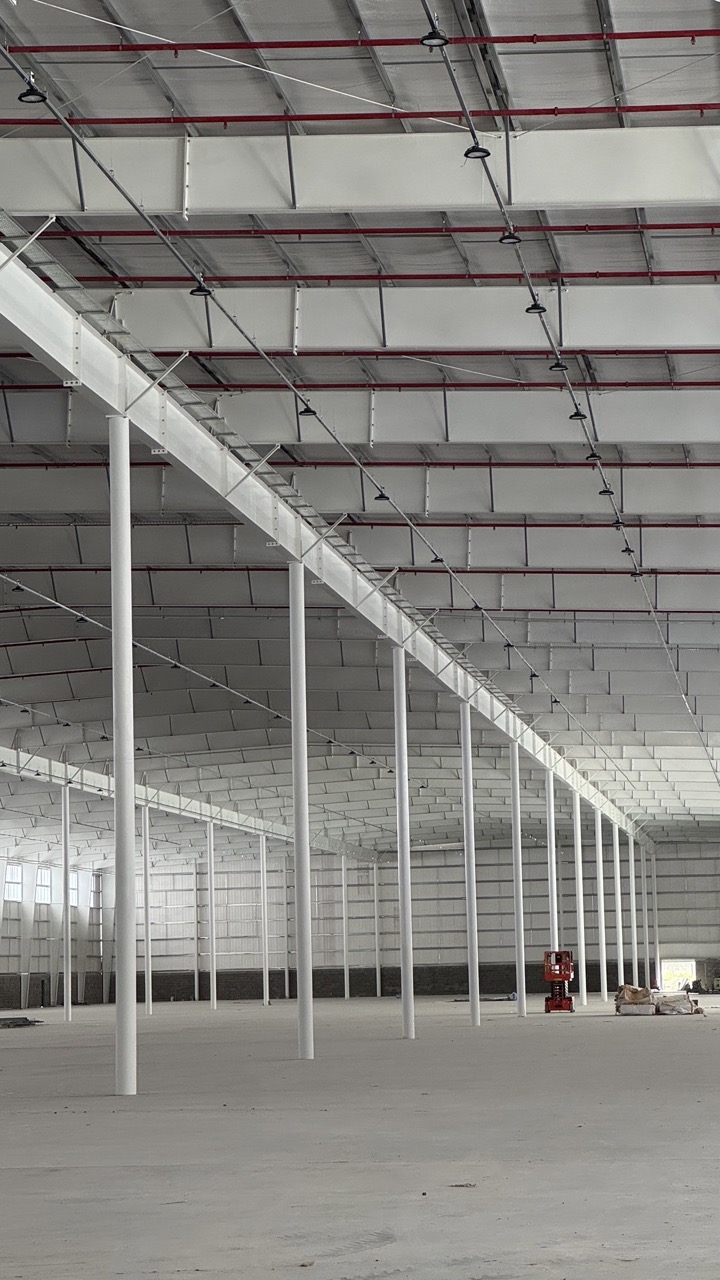

Plant expansion IMP roof new construction

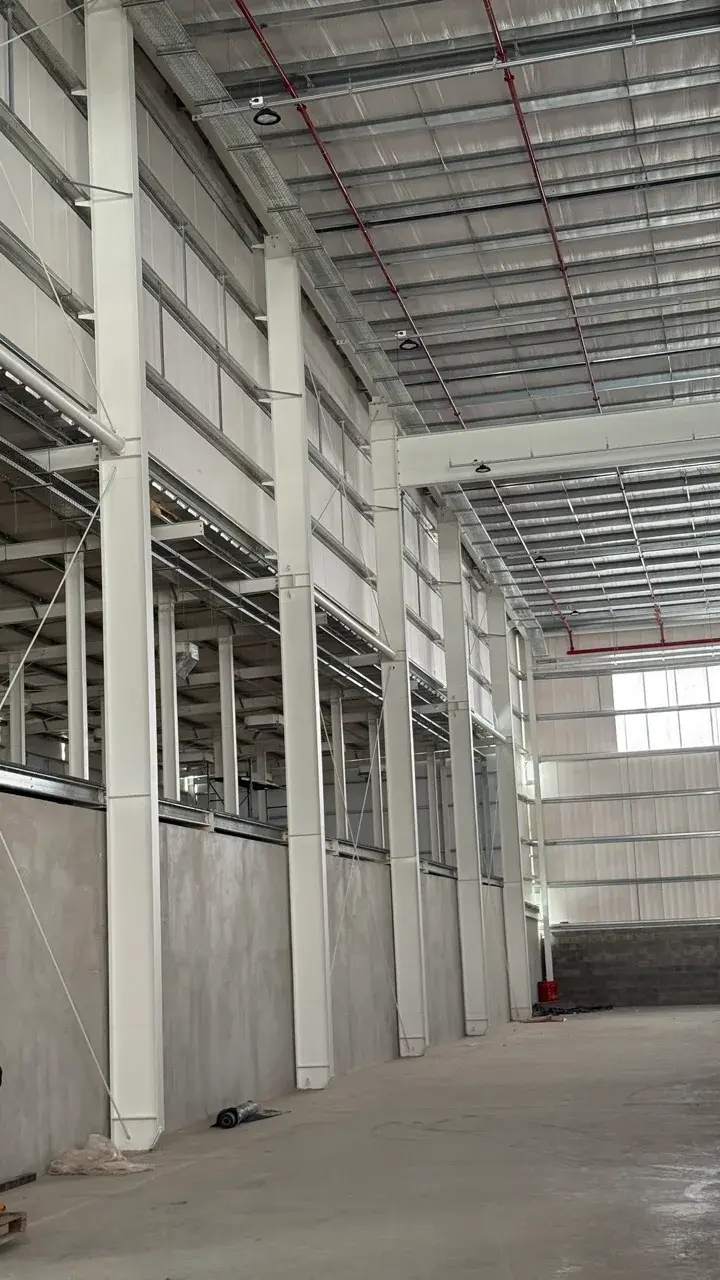

New industrial building C Series roof

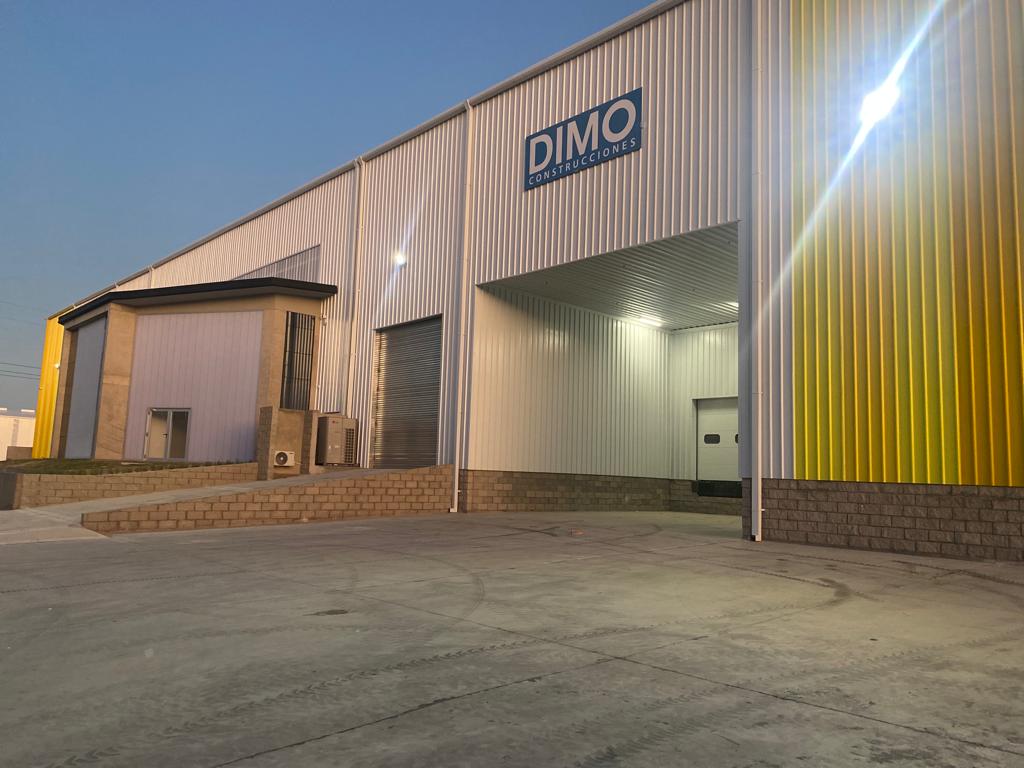

Industrial park IMP roof expansion

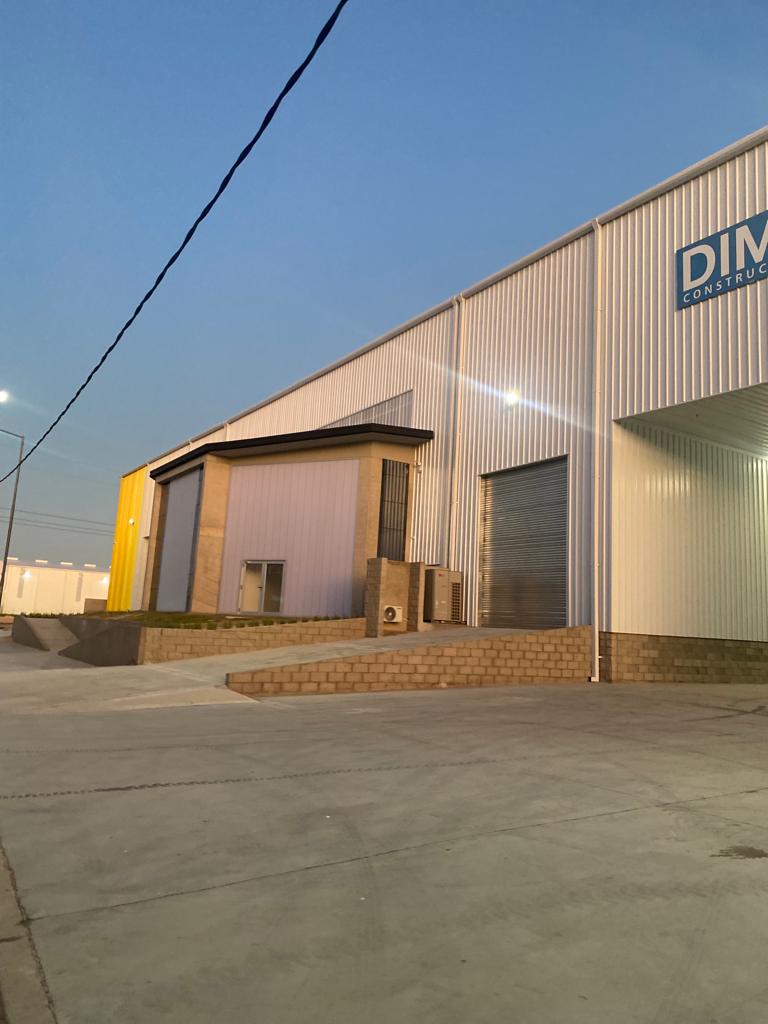

Warehouse expansion insulated panel roof
Pre-engineered to your exact span
No field insulation installation
Ships under 5 weeks from order
One vendor from spec to install

The Xipre Advantage

Large panel manufacturers ignore mid-size projects. We built Xipre for exactly that gap.

No minimums. Ever.

5,000 sqft gets the same service as 50,000 sqft.

Shop drawings in 3 days

Produced for your project and quoted with your panels. Three days, not three weeks.

Supply first, install when it fits

Supply only or full install available in Florida and beyond.

Custom specs sourced

Non-standard thicknesses, unusual spans, special coatings — we find it.

Florida Product Approved

FL 21699.1-R3 — no variances, no grey areas at permit.

15+ years · 50M+ sq ft

Dario Pussetto has deployed IMP roofs on 4 continents.

Ready to spec C Series?

Send us your sqft, slope, and span requirements. We'll have pricing and preliminary shop drawings back to you in 24–48 hours.
